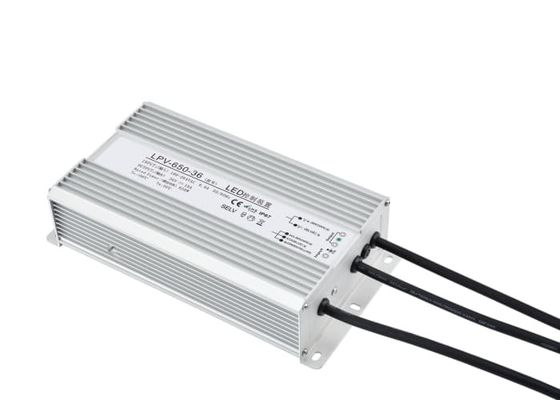

Waterproof LED Driver 24V/36V/48V/60V 650W Power Supply for LED Lamp for LED Lighting Application

Waterproof LED Driver 24V/36V/48V/60V 650W Power Supply for LED Lamp for LED Lighting Application

Description

The XH-LPV-650W series is a waterproof AC-to-DC LED driver. It is designed with constant voltage and constant power output, and operates on an AC input voltage ranging from 180V to 264V. The full series offers output voltages of 24V, 36V, 48V and 60V.

Boasting a conversion efficiency of up to 94.5% and a fanless structure, this driver can work via natural air cooling, with its case temperature staying between -20℃ and +60℃. Its metal enclosure and high IP protection class (IP65/IP67) allow the XH-LPV-650W series to be used in both indoor and outdoor scenarios. It also incorporates a 105℃ long-life aluminum electrolytic capacitor.

The XH-LPV-650W is equipped with comprehensive protection features and can resist 5G vibration. It meets safety standards like UL1012 and EN60950-1, and satisfies the energy-saving demands of next-generation LED lighting, serving as a cost-effective solution for various LED lighting applications

Features

• AC input voltage covers the range of 180~264VAC
• Output operates in constant voltage and constant power modes
• Protection functions included: Short circuit, overload, overvoltage, overtemperature protection, and more
• Cooling method: Natural air convection
• Aluminum housing with full protection design
• Full potting process applied, meeting IP65/IP67 protection standards, and installable both indoors and outdoors
• Suitable for use in dry, humid, and rain-exposed environments
• Undergoes 100% full-load burn-in testing
• Offers high efficiency, long service life, and strong reliability
• Backed by a 3-year quality warranty
